Alarm rules
Alarm rules allow to filter and redirect alarms toward existing plugins.
By example, you could do the following:
- Send all SAP jobs alarms to Bob by email
- Send internal alarms to Redpeaks admin by email
- If non office hours, send system CRITICAL alerts by SMS
- Decrease alert severity for non production systems
- Discard non CRITICAL alerts from JAVA stacks of customer X
- Send all alarms from customer A to ServiceNow plugin
- Send all alarms from customer B to ScienceLogic SL1 plugin
Configuration
Activation
- By default, alarm rules are not active
- All generated alerts are propagated to all active plugins
- Use the activation button to enable alarm rules processing.
Warning:
- If alarm rules are enabled, but no rules are defined, no alerts will be propagated to any plugin.
- You should at least define a rule that will take care of the default propagation of the alerts.
Rules definition
- Created rules will be organized in a table in a predefined order.
- Rules will be processed in the order displayed in the table
- You can move a rule up or down
- Press Add button to create a new rule.
- Set a meaningful name and a description to define your rule
Stop on first match:
- If enabled, the alarm won't be processed by the next rule if it matches current rule filters.
- Useful if you want to restrict or prevent the propagation of some alerts
The configuration of the rule consists of setting following parameters:
- Plugins: Where the alarm will be sent if matches all filters
- Schedule: Define when the rule is active
- Severities: What serverities to handle
- Filter: What alarm parameters are expected
- Action: What is going to be done with the alarm if all filter matches
Plugins
- Select the list of plugins that will be used to propagate the alert if it matches the rule filters
- Unless the selected action is Reject, each plugin from the list will receive the alarm.
Schedule
- Define when the rule is active
- You can define a time window within the day, some day of the week or a specific date
- Dates field can remain empty
- By example, you can use this option to send an alert by SMS to the support team during non office hours.
Severities
- Define the alarm severities to match
- Process only alarms with a matching severity
- You can by example process only MAJOR and CRITICAL alarms
Filters
- Filter will be applied on alarm parameters
- Only the alarms that matches the filter will be processed by the
Action - The filter will apply on one or several components:
- Group: The group of the system for which the alarm is generated.
- System SID
- Stack type: ABAP/JAVA/SYBASE/HANA/BO
- System tag: The tag associated to the group
- Module: The module ID of the alarm
- Alarm tag: The tag associated with the alarm
- Alarm message: The message itself
- Alarm count: The number of times the alarm has been triggered since first raised time. Reset to 1 when cleared.
- Agent: The agent from which the alarm is coming from
- The filter will compare the component value of the alarm with a value, by using following comparators:
- Equals: Strictly equal to a given value (case insensitive)
- Matches with: A way to check that value contains at least some part of text (see example below)
- Different than: Is strictely different than a given value
- The filter will evaluate the rules in the predefined order, using the selected operator
- AND: All rule must be true
- OR: At least one rule must be true
Matches withexamples
| Operation | Filter value | Comment |
|---|---|---|
| contains | ABC | Matches if value contains text 'ABC' |
| contains any | ABC, DEF, GHI | Matches if value contains at least one of the coma separated text |
| contains all | ABC + DEF | Matches if value contains all coma separated text |
| excludes | !ABC | Matches if value does not contain 'ABC' |
| excludes all | !ABC, !DEF | Matches if value does not contain any of the coma separated text |
| Regexp | .*ABC.*DEF$ | Matches if value contains ABC and ends with DEF |
Actions
- Defines how to process the alert if it matches all above filters, including schedules and severities:
- Process: Simply propagate the alert to the selected plugins
- Reject: Discards the alert
- If you want the alarm to be completely rejected, you must enable: Stop on first match

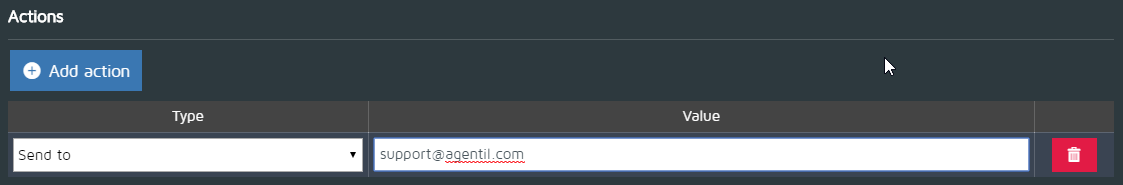

- Send to: Send the alert to the specified recipient (Needs to be associated with email plugin)
- Transform: Modifies the content of the alarm
Transform:
- Allows to modify the alarm severity
Transform syntax:
- severity+X : Increase the level of severity by X
- severity-X : Decrease the level of severity by X
- severity=X : Set the level of severity to X
Note: More transform capabilities to come.
