Elasticsearch Plugin

This plugin allows you to send alarms, metrics and metadata directly to an Elasticsearch instance
Each data type can be indexed in separate Elasticsearch indices

Configuration

  • From the plugin menu of Redpeaks Cockpit, press the button + Create then select Elasticsearch in the drop-down.

Connection parameters

Parameter Description Mandatory
Active Enables or disables the Elasticsearch plugin Yes
Configuration Choose between Standard Configuration or Cloud Configuration Yes
Name A unique name for the plugin instance Yes
URL The URL (with HTTPS for a secure connection) Yes (if Standard Config selected)
Port The port used to connect to Elasticsearch (Default: 9200) Yes (if Standard Config selected)
Cloud ID The Cloud ID used for connecting to a cloud-based Elasticsearch instance Yes (if Cloud Config selected)
API Key The API key for authentication Yes (if Cloud Config selected)
Username The username for Elasticsearch authentication No
Password The password for Elasticsearch authentication No
Properties A semicolon-separated list of additional Elasticsearch properties No

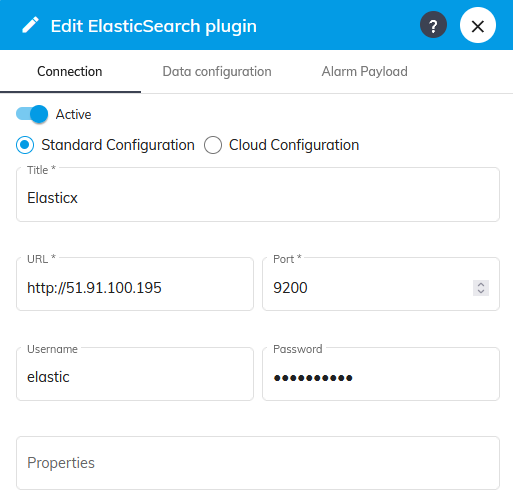

Example:

Properties

  • Properties are key/value pairs separated by semicolon: setting1=value1;setting2=value2
  • Common Elasticsearch properties include settings for index refresh intervals, number of replicas, etc.

Data configuration

  • Open the Data Configuration tab to define how data is sent and indexed in Elasticsearch.
Alarms parameters
Parameter Description Mandatory
Send alarms If active, alarms received by the plugin will be sent to Elasticsearch No
Track alarms history If active, enables tracking of alarm send history in the plugin statistics No
Alarm Index The Elasticsearch index prefix where alarms will be stored (Default: alarms-redpeaks) Yes (if Send alarms checked)
Metrics parameters
Parameter Description Mandatory
Send metrics If active, metrics received by the plugin will be sent to Elasticsearch No
Track metrics history If active, enables tracking of sent metrics in the plugin statistics No
Metric Index The Elasticsearch index prefix where metrics will be stored (Default: metrics-redpeaks) Yes (if Send metrics checked)
Metadata parameters
Parameter Description Mandatory
Send metadata If active, metadata received by the plugin will be sent to Elasticsearch No
Track metadata history If active, enables tracking of sent metadata in the plugin statistics No
Split metadata If active, flattens metadata before sending it No
Metadata Index The Elasticsearch index prefix where metadata will be stored (Default: metadata-redpeaks) Yes (if Send metadata checked)
  • You can specify different index prefixes for alarms, metadata and metrics.
  • The data will be indexed according to the configured settings, allowing for efficient search and retrieval.

Performance & advanced settings

Queue & batching
Parameter Description Mandatory
Max queue size Maximum number of items held in the internal queue before dropping new data (Default: 1000000) Yes
Batch size Maximum number of items sent per bulk request (Default: 25000, min: 1) Yes
Async threads Number of parallel send threads per data type. 1 = synchronous, >1 = async (Default: 1, max: 20) Yes
Socket timeout (ms) Socket timeout for Elasticsearch requests in milliseconds (Default: 60000, range: 1000-600000) Yes
Elasticsearch features
Parameter Description Mandatory
Create templates Automatically create Elasticsearch index templates on startup (Default: enabled) No
Use datastream Use Elasticsearch datastreams instead of regular indices (Default: disabled) No
Use compression Enable gzip compression for data transmission to Elasticsearch (Default: enabled) No

Example:

Custom alarm payload

  • When Enable Custom Payload is active, you can define a custom payload template for alarms.
  • This allows you to customize the data sent to Elasticsearch when an alarm is triggered.
  • You can see more examples on Custom alarm sender
Enable Custom Payload for Alarms If active, allows customization of the alarm payload No
Alarm Payload The custom payload template for alarms Yes (if Custom Payload is enabled)

Example:

Using Custom Payload

  • Formatting the Payload : Use the Format button to format your payload template.
  • Testing the Payload : Use the Test Payload button to test your payload with sample data.
  • Payload Variable Helper : Use the Payload Variable Helper button to insert variables into your payload template.

Available Variables

You can use variables from the following categories in your payload template:

  • Alarm Variables: Information about the alarm
  • Organization Variables: Information about the organization
  • Group Variables: Information about the group
  • System Variables: Information about the system
  • Connector Variables: Information about the connector
  • Properties Variables: Custom properties defined in your system

Notes:

  • Ensure that all variables used in your template are correctly formatted and correspond to existing data fields.
  • Ensure that the Elasticsearch instance is reachable and properly configured to accept data from your application.

Troubleshooting

If you encounter issues:

  • Verify the hostname and port (Standard Configuration) or the Cloud ID and API key (Cloud Configuration).
  • Check Elasticsearch logs for any errors related to authentication or index operations.
  • Ensure that the indices specified in the configuration exist in Elasticsearch and have the appropriate permissions set for the configured user.
  • PKIX / Certificate errors: If you see PKIX path building failed errors, you need to import the Elasticsearch server certificate into the Java truststore of the Cockpit server:
    • Export the certificate from your Elasticsearch server (or get it from your CA)
    • Import it using: keytool -importcert -alias es-cert -file your-cert.pem -keystore $JAVA_HOME/lib/security/cacerts -storepass changeit
    • Restart the Cockpit application
  • Plugin shows stats at 0 after config update: Fixed in latest version. If the issue persists, recreate the plugin.
  • Log spam when Elasticsearch is unreachable: Connection error logs are throttled to avoid flooding. Check the plugin statistics panel for current error status.
