• Several Redpeaks instances can work together to distribute monitoring workload.
• The instance with central server role will manage the configuration and distribute tasks to the ones with agent role.
• A central server can also act as an agent.
• A standalone Redpeaks instance will therefore be a central server and an agent.
• Communication between Server and agents is Unidirectionnal: Only agents will initiate connection to the Server.
• The Server doesn't require any inbound connection to the agent's network.
• The server can therefore be publicly accessible while the agents can be in protected area: No need for SSL tunnel, VPN or complex network settings to deploy a mutli-instance implementation and centrally manage the monitoring of multiple isolated environments.
• This architecture can also be used to add more robustness, by having several monitoring agents and be resilient in case one goes down.

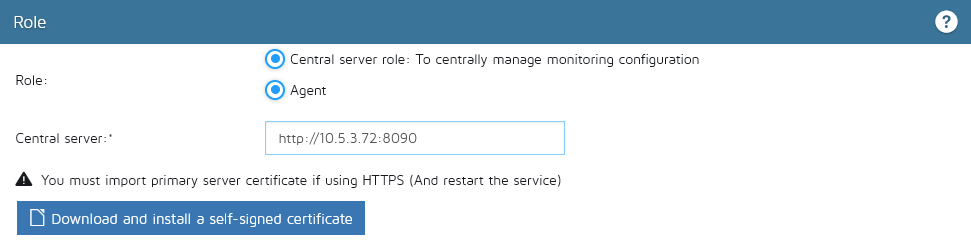

• In the Role section, you can configure:
  • Central server role : If active, the instance will centrally manage monitoring configuration
  • Agent: If active, the instance will execute monitoring tasks (connect to systems, detect problems, generate metrics and alerts)
  • Central server URL: The server to bind to.
  • Download and install a certificate
    • Simply click on “Download and install a self-signed certificate” button and Redpeaks will perform all necessary operation to have the job done !
    • Be aware of the following :
      • Default certificate will not work in Multi-instance mode, agents will refuse the connection because the certificate is not bound to server IP address
      • In this case, you must generate a self signed certificate and bind it to the local IP
      • Generated certificates will be stored in the keystore
      • Redpeaks keystore is located in the certificates/.keystore file of Redpeaks install folder
      • ATTENTION : Any change in security settings will be effective only after restarting Redpeaks

• This is the default mode, no specific configuration is required.
• Central server and agent roles are both enabled. In this mode, Redpeaks is an agent and a server at the same time.
• The server will manage the configuration, user interface and execute monitoring tasks.
• Every Redpeaks instance with an enabled agent has a local agent used to execute monitoring tasks.
• The agent will appear automatically in the list of accepted agents and cannot be deleted.

NOTE: In standalone mode, it is not necessary to assign groups to the local agent. But if you do so, unassigned groups won't be monitored.

• In this mode, Redpeaks will manage the configuration of the monitoring and distribute tasks to one or several remote agents.
• It will be used as monitoring portal for the users and also hold the database, and connect to the plugins.
• Central server role must be active in the Multi-instance tab
• Central server URL, including scheme and port number must be registered in the Central server URL field of each agent
• Each agent bound to the server must be accepted once by the admin
• Associations between groups and agents must be done via the Agents groups tab.
• One group can be managed by several agents, in that case, group workload will be distributed across each compatible agent.
• Some system settings from central server will be propagated automatically to each agent:
  • Number of parallel tasks
  • Monitoring process timeout
  • Log level and duration
• Most others like Monitoring process memory will still be local settings
• If the Agent role is enabled, the local agent will be used as any remote agents.

NOTE: You can visualize agent activities in the Monitor statistics menu (Must activate monitors results retention in System tab)

• In Multi-instance tab, activate Agent mode and deactivate Central server role
• Define the agent name to use
• Set the primary server URL
• Save the settings. The agent will connect to the primary server and will be handled from there.
• Some local settings will still remain available, such as System→monitoring processes memory or log retention
• Connecting to central server in HTTPS:
  • Server must use an certificate generated for its actual IP (will not work will the default certificate)
  • Download server certificate using your browser and add it in the Redpeaks keystore of the agent (see HTTPS config for more details)

NOTE:

• If the instance was previously used as a server, its configuration will be hidden until switched back to its server role.
• The Agent doesn't require any licence

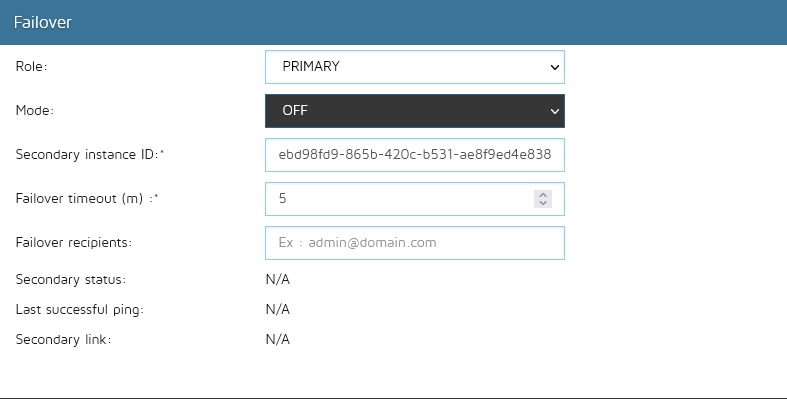

Failover allows to implement high availability for a Redpeaks collector

Warning:

• The failover feature cannot be used when a collector is associated with a Redpeaks cockpit

• To implement high availability, one Redpeaks instance must be set as PRIMARY and another one as SECONDARY
• Url of the PRIMARY must be registered in the SECONDARY
• Instance UUID of the SECONDARY must be set in the PRIMARY
• PRIMARY must be set to ACTIVE mode
• SECONDARY must be set to STANDBY mode

Once set the following will happen:

• The SECONDARY will regularly poll the PRIMARY and refresh its configuration if anything changed on the PRIMARY.
• The SECONDARY will switch to ACTIVE mode to replace the PRIMARY in two cases:
  • If the SECONDARY cannot reach the PRIMARY after a timeout.
  • If the PRIMARY indicates an inconsistent state to the SECONDARY

To revert from a failover:

• If the PRIMARY becomes online again, the SECONDARY will not switch to STANDBY automatically
• You have to manually set the SECONDARY to STANDBY. DO NOT SWITCH PRIMARY TO ACTIVE I must become active automatically
• If SECONDARY is in STANDBY mode, the PRIMARY will automatically switch to ACTIVE

By default, the failover mode is set to OFF, use this mode to deactivate the failover mechanism.
