Elasticsearch Plugin

Purpose

This plugin allows you to send alarms, metric and monitor metadata directly to an Elasticsearch instance
Alarms, metrics and monitor metadata can be indexed in separate Elasticsearch indices
Built-in retry mechanism on Elasticsearch overload (HTTP 429 / rejected execution)
Supports bulk indexing, buffering to protect Elasticsearch under load
Automatic backpressure management: reduces flush rate and batch size when Elasticsearch is overloaded
Non-blocking plugin updates: configuration changes via the UI will not hang even if Elasticsearch is unreachable

Configuration

From the plugin menu of Redpeaks, select Elasticsearch in the plugin drop-down and press Add.
The plugin has the following parameters:

Parameter	Description	Mandatory
Active	Enables or disables the Elasticsearch plugin	Yes

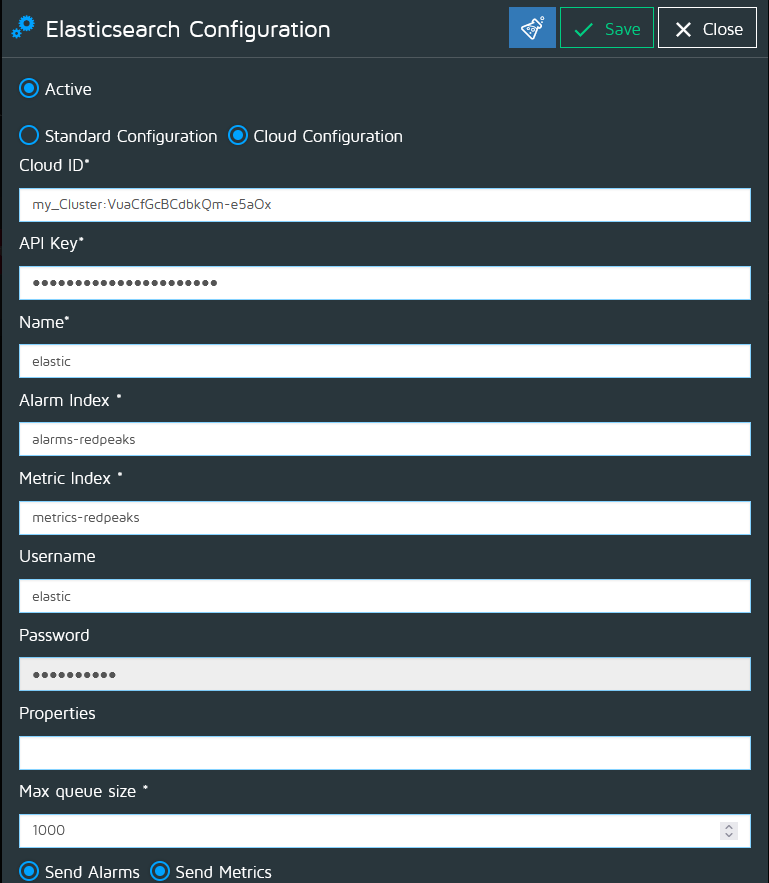

Configuration	Choose between Standard Configuration or Cloud Configuration	Yes
Hostname	The IP address or hostname of the Elasticsearch instance (Standard Config)	Yes
Port	The port used to connect to Elasticsearch (Default is 9200)	Yes
Cloud ID	The Cloud ID used for connecting to a cloud-based Elasticsearch instance (Cloud Config)	Yes
API Key	The API key for authentication (Cloud Config)	Yes
Name	A unique name for the plugin instance	Yes
Alarm Index	The Elasticsearch index where alarms will be stored	Yes (if Send alarms checked)
Metric Index	The Elasticsearch index where metrics will be stored	Yes (if Send metrics checked)
Metadata Index	The Elasticsearch index where metadata will be stored	Yes (if Send metadata checked)
Username	The username for Elasticsearch authentication	No
Password	The password for Elasticsearch authentication	No
Properties	A semicolon-separated list of additional Elasticsearch properties	No
Max queue size	Maximum number of documents kept in memory before dropping. Minimum: 1000. Very large values (>250,000) may cause high RAM usage	Yes
Max items per flush	Maximum number of documents per bulk flush (batch size). Must be greater than 0. Values above 100,000 may cause long flush times	Yes
Threads	Number of worker threads used to flush batches (1 to 30)	Yes
Socket timeout (ms)	HTTP socket timeout for Elasticsearch requests. Minimum: 5,000 ms (5s). Maximum: 300,000 ms (5min)	Yes
Send alarms	Enables sending alarms	No
Send metrics	Enables sending metrics	No
Send metadata	Enables sending metadata	No
Split Metadata	Sends metadata as multiple documents (one per array element)	No
Use Datastream	Uses datastream templates + datastream indexing	No
Create Templates	Automatically creates templates (for datastream mode)	No
Use Compression	Enables HTTP compression for Elasticsearch requests	No

Indices

You can configure different indices (or prefixes) for alarms, metrics, and metadata.

When Create Templates is enabled, the plugin automatically creates index templates
When Use Datastream is enabled, data is indexed into Elasticsearch datastreams

If templates are disabled and datastream too, the plugin can attempt a fallback index creation if an index does not exist

Example

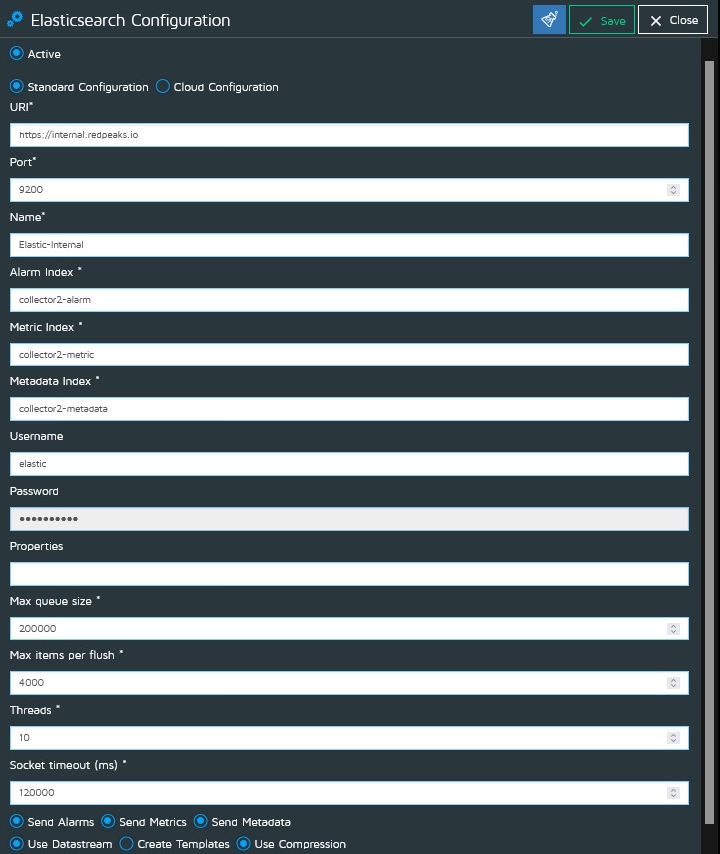

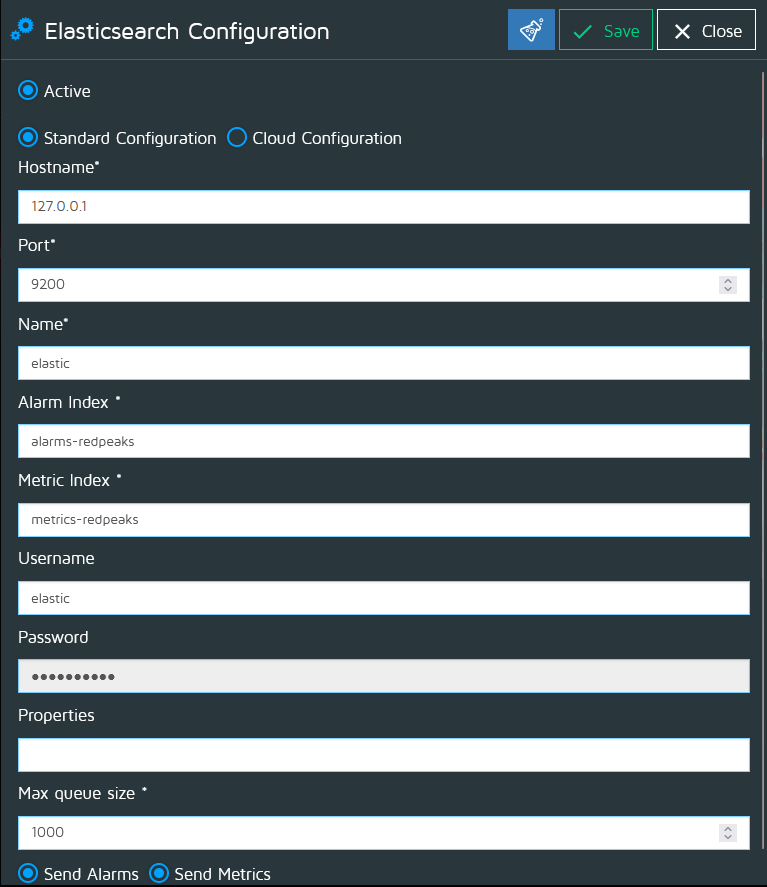

Standard Configuration

Note: Ensure that the Elasticsearch instance is reachable and properly configured to accept data from Redpeaks The configured user or API key must have permission to write documents and manage templates if enabled

Troubleshooting

If you encounter issues:

Verify the hostname and port (Standard Configuration) or the Cloud ID and API key (Cloud Configuration)
Check Elasticsearch logs for any errors related to authentication or index operations
Ensure that the indices specified in the configuration exist in Elasticsearch and have the appropriate permissions set for the configured user
If Elasticsearch is overloaded (HTTP 429), consider reducing the batch size or increasing cluster capacity
If the plugin shows “Could not acquire lock” errors in the logs, it means a flush was stuck for more than 90 seconds — check Elasticsearch connectivity and performance
Check the plugin statistics page for dropped metrics/alarms/metadata counters — non-zero values indicate the queue was full and data was lost
