NetCool plugin

This plugin allows to send alarms to the NetCool bus, and to customize parameters of the alarm payload.

Configuration

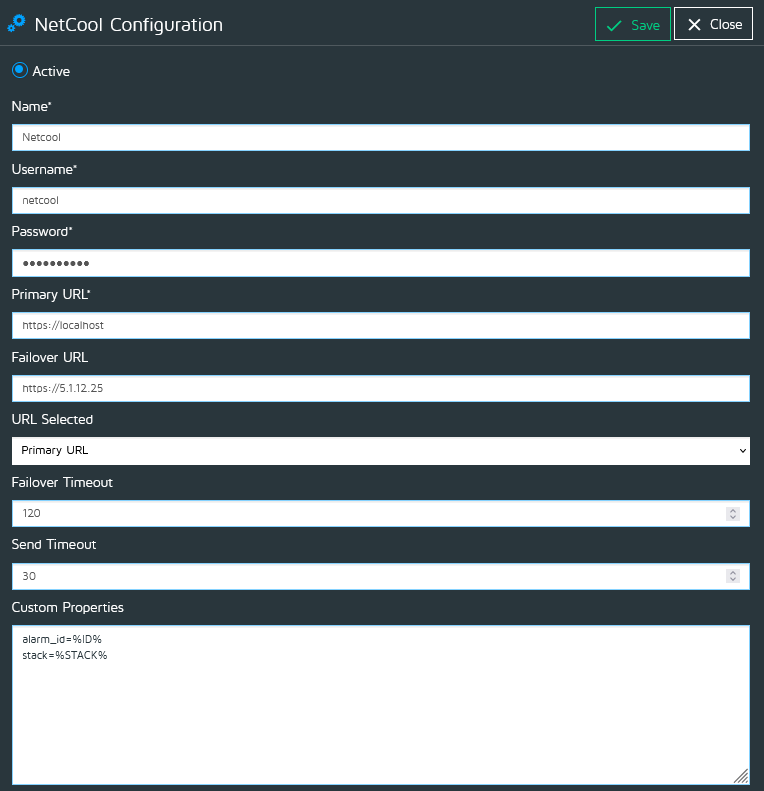

  • Fill the plugin settings form:
    • Active: Toggle to enable or disable the plugin
    • Name: The name of the plugin
    • Username The username for connecting to Netcool
    • Password The password for connecting to Netcool
    • Primary URL: Web service URL to send all alarms by default
    • Failover URL Backup web service URL, used if the primary URL becomes unavailable
    • URL Selected The active URL in use (defaults to Primary, but can manually switch to Failover if needed)
    • Failover Timeout The time interval before automatically switching between URLs if a failure occurs
    • Send Timeout Timeout duration for alarm send
    • Custom properties: Specify additional custom properties for alarm payloads
      • You can override default properties of the alarm payload.

Warning:

Default payload

  • The fields below are mandatory in the NetCool payload
Field Description
Severity Alarm severity
Type 1 (Problem)
AlertGroup Alarm module
AlertKey Alarm id
Node System
Summary Alarm message

Custom Parameters

**Notice that you can use the following predefined variables along to customize the payload send by the plugin to NetCool **

Variable Description
%ID% replaces by the Alarm ID
%GROUP% replaces by the Group (Company) name
%SID% replaces by the System ID (SID)
%CLIENT% replaces by the SAP client (ABAP Connector)
%INSTANCE% ** | replaces by the instance name | | **%SEVERITY% ** | replaces by the the Alarm severity level | | **%MESSAGE% replaces by the Alarm message
%MODULE% replaces by the Alarm module
%TO_CLEAR% replaces by “true” or “false” depending on if the Alarm is to be cleared or not
%CLEARABLE% replaces by “true” or “false” depending on if the Alarm is a “can-be-cleared” type or not
%COMPONENT% replaces by the Alarm component (i.e. “disk”)
%STACK% replaces by the alarm stack type
%ALARM_TAG% replaces by the description of the alarm tag
%CLEARED% replaces by “CLEARED” if the Alarn has been already cleared or “” (none) if not
%COUNT% replaces by alarm counter
%AGENT% replaces by the Agent UUID (Redpeaks internal Agent unique identifier code)
%SAMPLE_RATE% replaces by the monitor sample rate as per execution schedule
%RULE_NAME% replaces by the name of the rule matched by the alarm, if any
%RULE_DESCRIPTION% replaces by the description of the rule matched by the alarm, if any
%TIMESTAMP% replaces by the formatted timestamp of the Alarm in local timezone
%TIMESTAMP_UNIX% replaces by the unformatted timestamp of the Alarm in UNIX epoch format (milliseconds since January 1st 1970)
%TIMESTAMP_XXX% replaces by the formatted timestamp of the Alarm using specified timezone (XXX): Example: %TIMESTAMP_UTC%

Example:

Summary=%SID% %MESSAGE%
Node=%INSTANCE%
Stack=%STACK%
Date=%TIMESTAMP_CET%

Usage

  • Once configured, all generated alarms will be processed by the plugin and sent to the integration.
  • Activate alarm rules to control which alarms will be processed by the plugin.
  • Use the plugin Details button from the plugins table to display usage statistics.
  • Define multiple plugins; they work independently.
  • The plugin processes alarms only when active.
  • The Send Timeout is the maximum time allowed for sending an alarm query before it fails.

Failover System

  • If the Selected URL (default is Primary) cannot be reached within this Failover Timeout, the plugin will attempt to connect to the Failover URL
  • If the Failover URL works, alarms will continue to be sent via Failover.
  • The plugin will remain on Failover until manually updated to switch back to Primary.
  • If the Failover URL also fails, the plugin will retry connecting to the Primary URL periodically (Time writed on Failover Timeout).
  • You can manually swap the Primary URL to the Failover URL in the configuration for planned maintenance.
